Material: PP-RCT – copper
Standard: EN ISO 15874, DIN 8077, DIN 8078, DSTU B V.2.5-18:2001
Used for connecting to the lower connection unit of a heating radiator using a eurocone for copper.
Tmax 95°С.

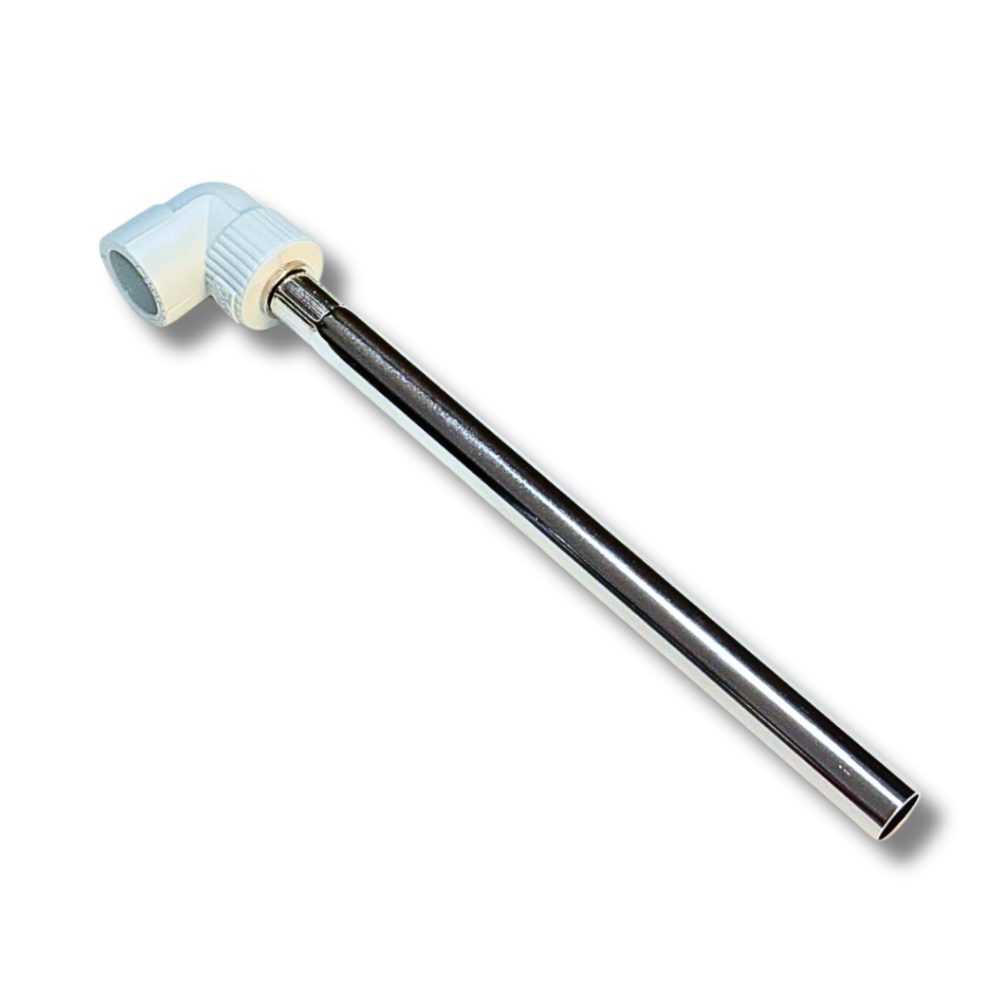

Elbow with a pipe for connecting a radiator ASG

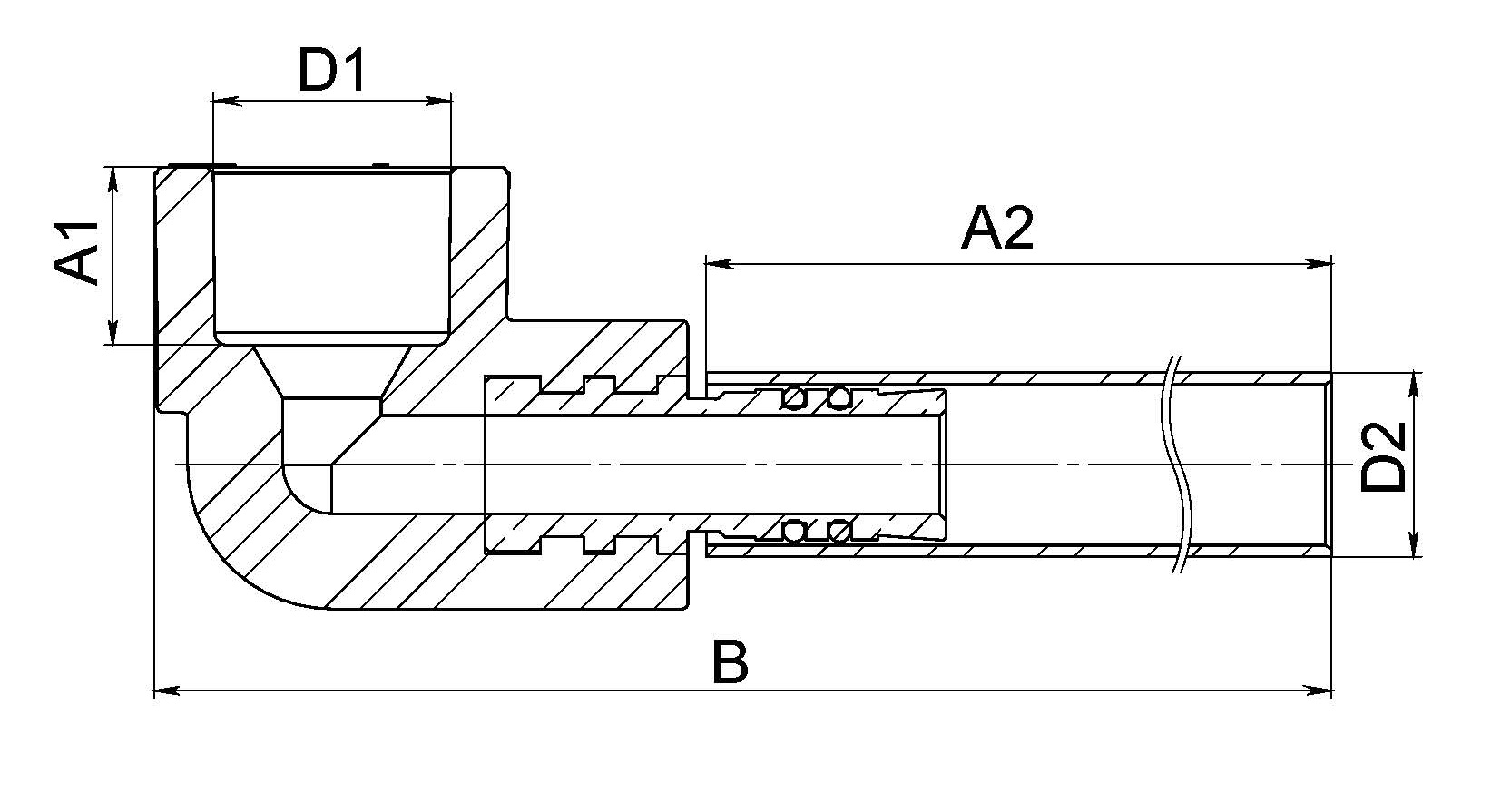

Size chart
| Article number | Size | D1 (mm) | D2 (mm) | B (mm) | A1 (mm) | A2 (mm) | Quantity in a package (pcs) | Bulk (dm³) |
| 6555522 | 20 | 20 | 15 | 245 | 14,5 | 200 | 100 | 1,87 |
Scope of application
Heating, air conditioning
Shipbuilding
Heat pumps
