Purpose: designed for connecting pipes in polyethylene piping systems (PEX, PERT). Used in heating and water supply systems.
Material:
CW617N brass
Working pressure: 10 bar

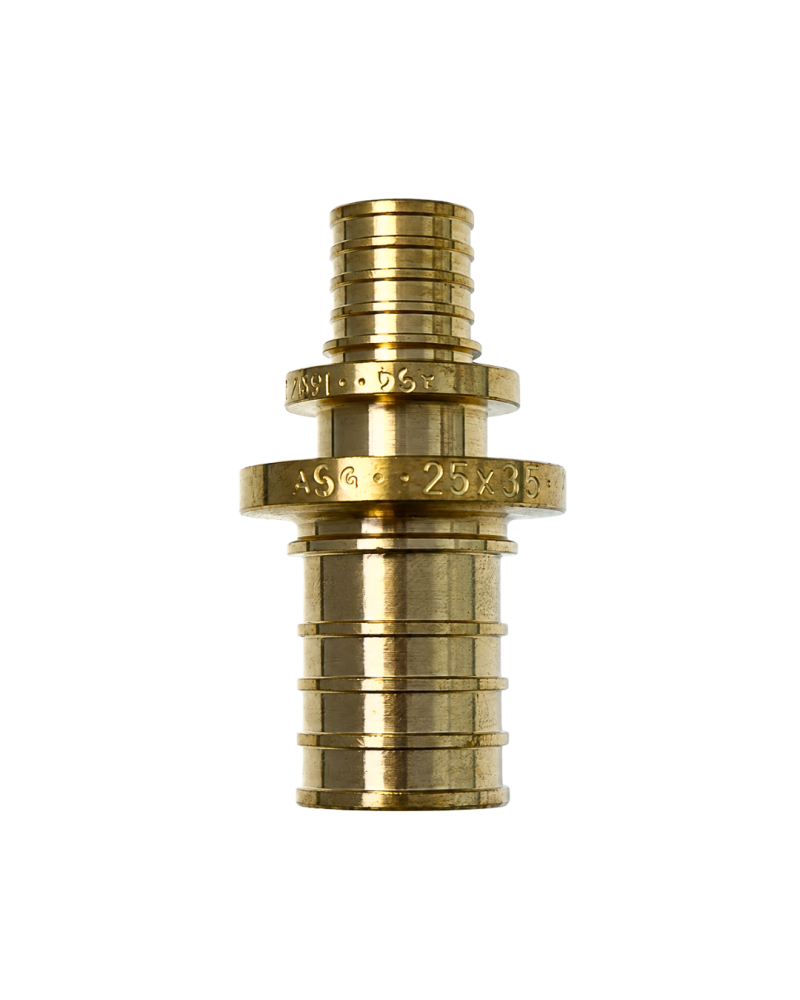

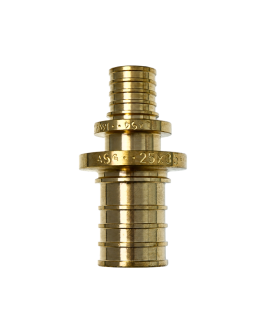

Reducing push-fit adapter

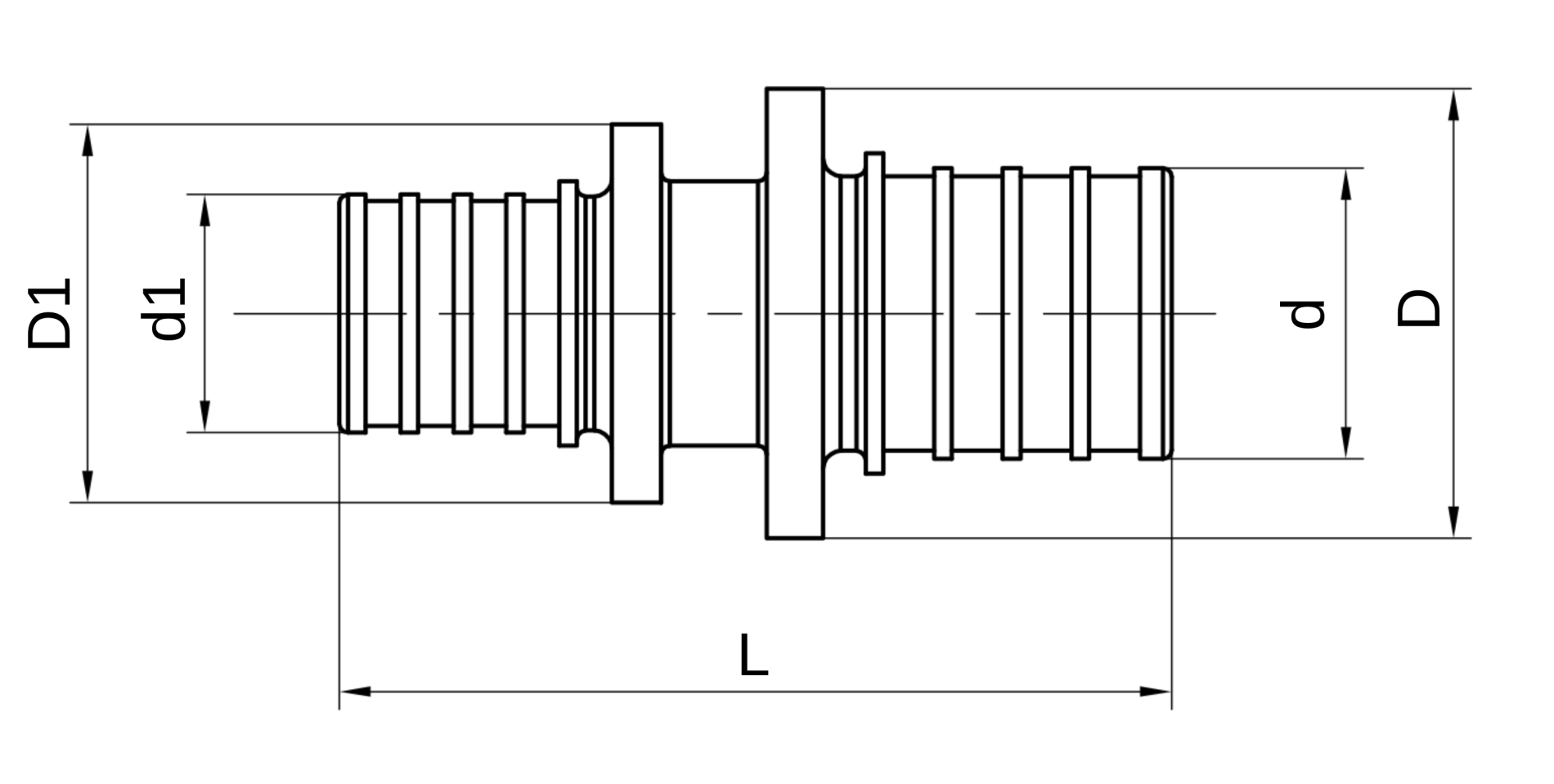

| Article | Size | d (mm) | d1 (mm) | D (mm) | D1 (mm) | L (mm) | Quantity per package (pcs.) |
| 6559698 | 16x20 | 16,5 | 13,5 | 25,5 | 22,0 | 47,5 | 5/45/360 |
| 6559699 | 16x25 | 19,8 | 13,5 | 30,5 | 22,0 | 55,5 | 2/30/240 |
| 6559700 | 20x25 | 19,8 | 16,5 | 30,5 | 25,5 | 60,0 | 2/24/192 |
| 6559701 | 25x32 | 25,3 | 19,8 | 39,0 | 30,5 | 74,5 | 1/15/120 |
