Purpose: designed for connecting pipes in polyethylene piping systems (PEX, PERT). Used in heating and water supply systems.
Material:
CW617N brass
Working pressure: 10 bar

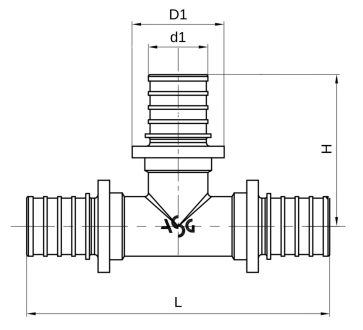

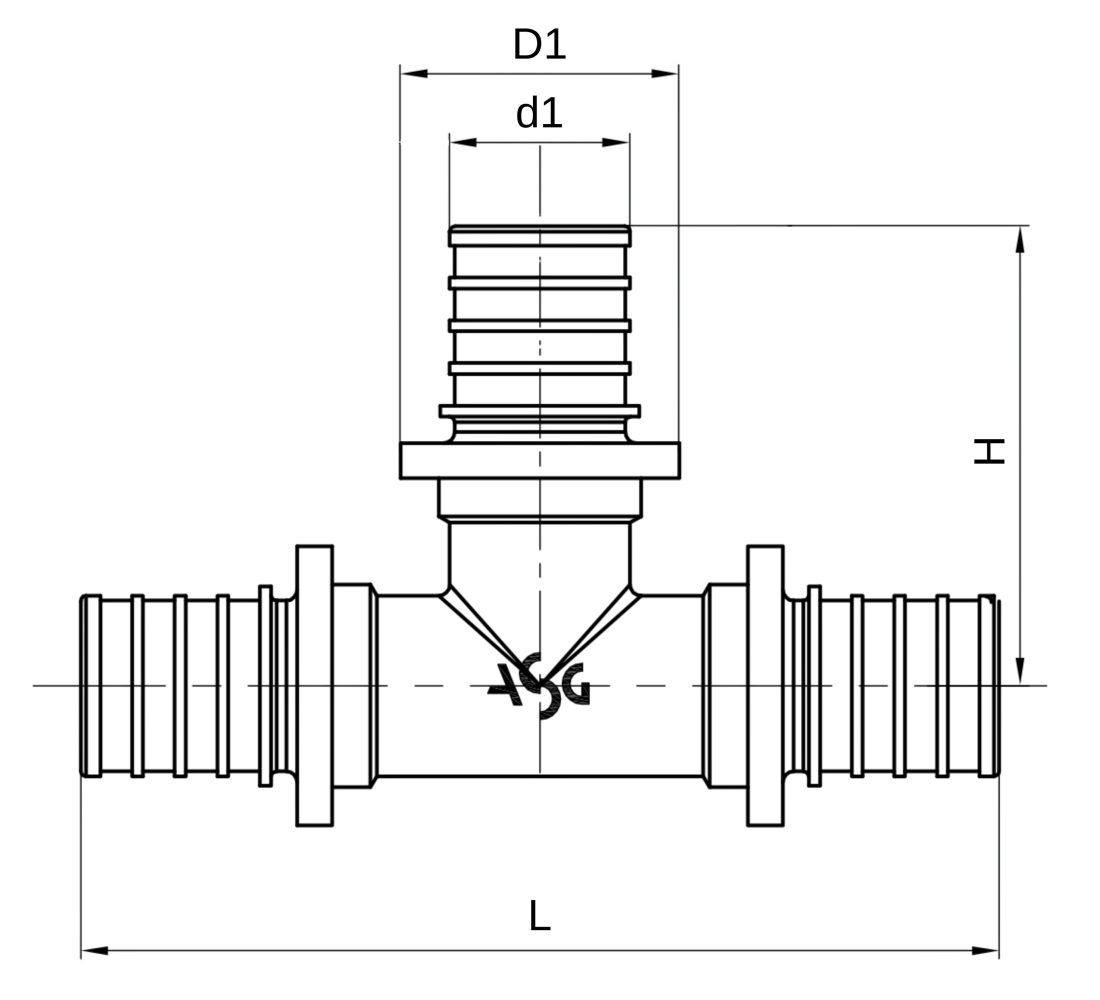

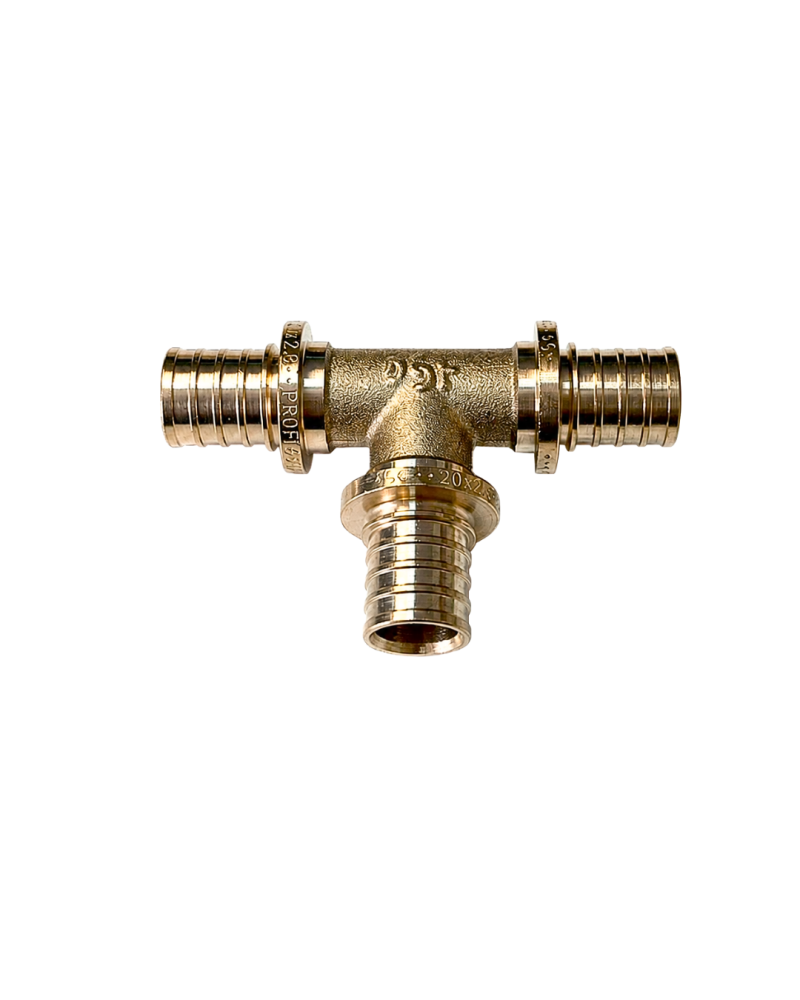

Push-fit tee
| Article | Size | d1 (mm) | D1 (mm) | L (mm) | H (mm) | Quantity per package (pcs.) |
| 6559739 | 16 | 13,5 | 22,0 | 71,0 | 35,5 | 5/20/160 |
| 6559740 | 17 | 16,5 | 25,5 | 84,0 | 42,0 | 5/15/120 |
| 6559741 | 18 | 19,8 | 30,5 | 105,0 | 52,5 | 2/8/64 |
| 6559742 | 19 | 25,3 | 39,0 | 128,0 | 64,0 | 1/4/32 |
