Purpose: designed for connecting pipes in polyethylene piping systems (PEX, PERT) to shut-off valves and/or plumbing fixtures. Used in heating and water supply systems.
Material: CW617N brass
Working pressure: 10 bar

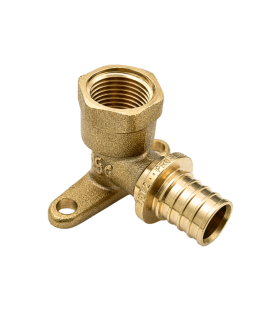

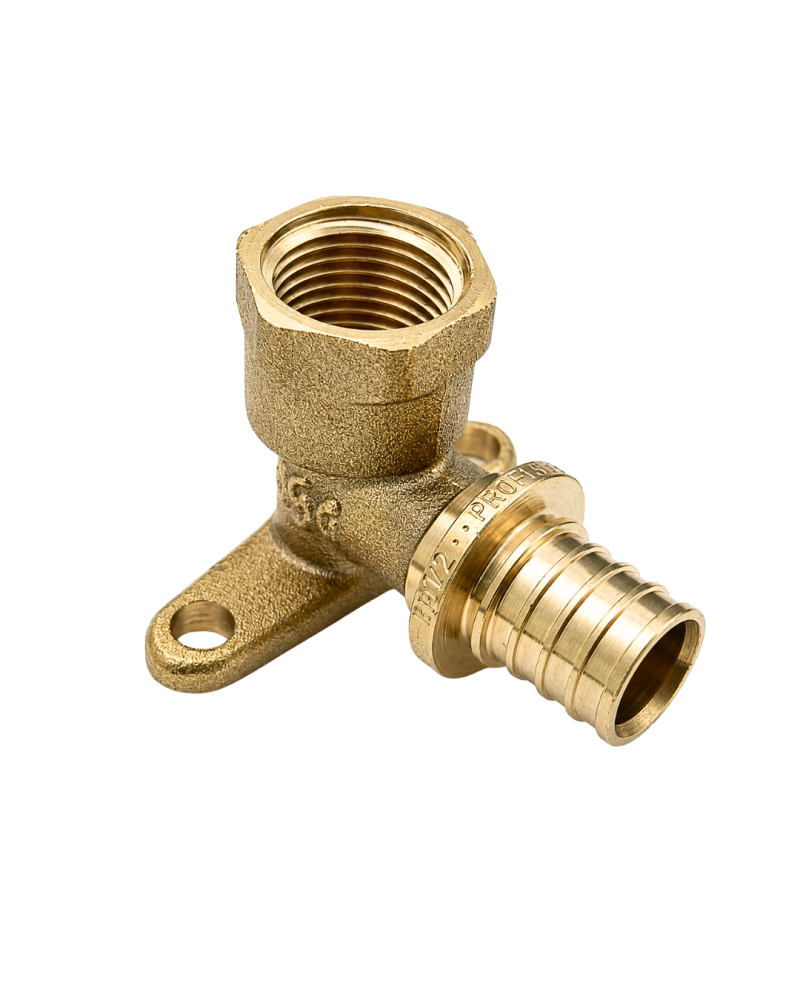

Push-fit mounting elbow with female thread

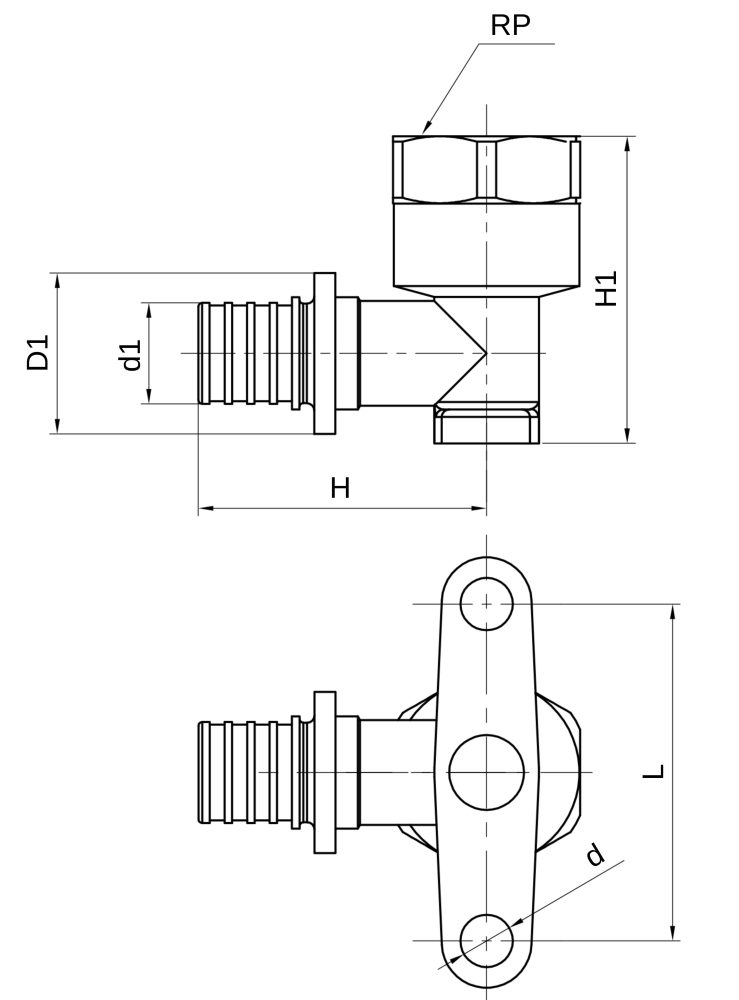

| Article | Size | d (mm) | d1 (mm) | D1 (mm) | L (mm) | H (mm) | H1 (mm) | RP | Quantity per package (pcs.) |
| 6559737 | 16x1/2" | 7,0 | 13,5 | 22,0 | 45,0 | 38,5 | 41,0 | 1/2 | 5/25/200 |
| 6559738 | 20x1/2" | 7,0 | 16,5 | 25,5 | 45,0 | 43,5 | 43,0 | 1/2 | 5/20/160 |
| 6560050 | 20x3/4" | 7,0 | 16,5 | 25,5 | 45,0 | 47,0 | 42,5 | 3/4 | 5/15/120 |
