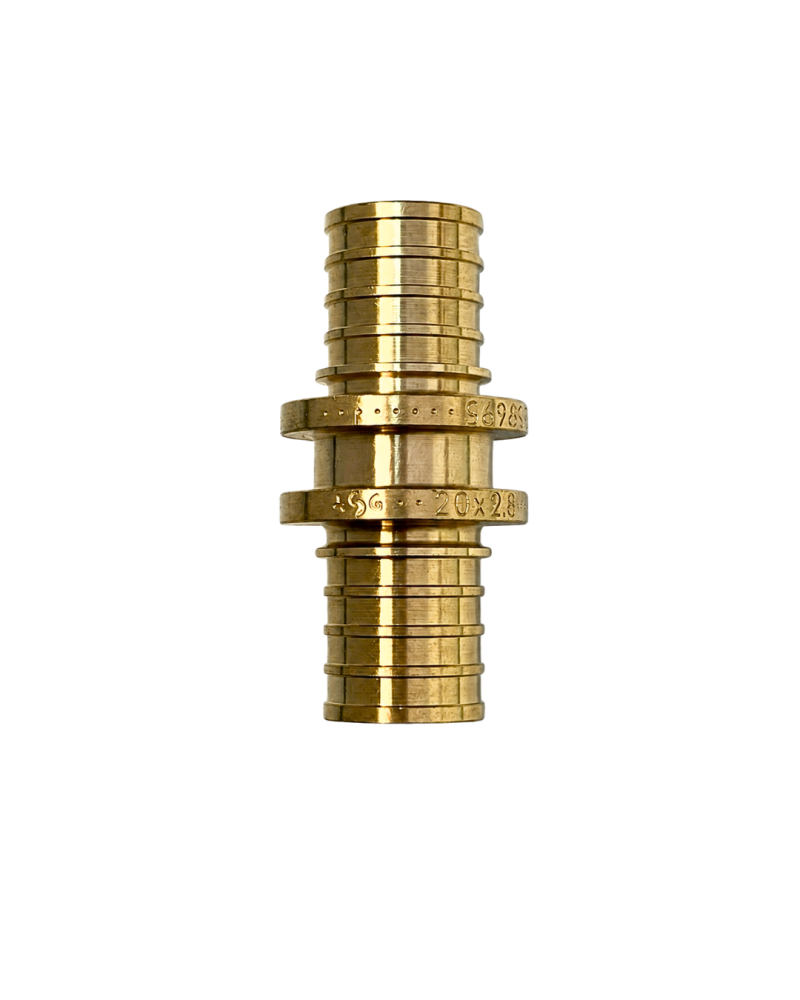

Push-fit coupling

 Warranty: 10 years
 Warranty: 10 years

Purpose: designed for connecting pipes in polyethylene piping systems (PEX, PERT). Used in heating and water supply systems.

Material:
CW617N brass

Working pressure: 10 bar

 Warranty: 10 years
Calculate wholesale price

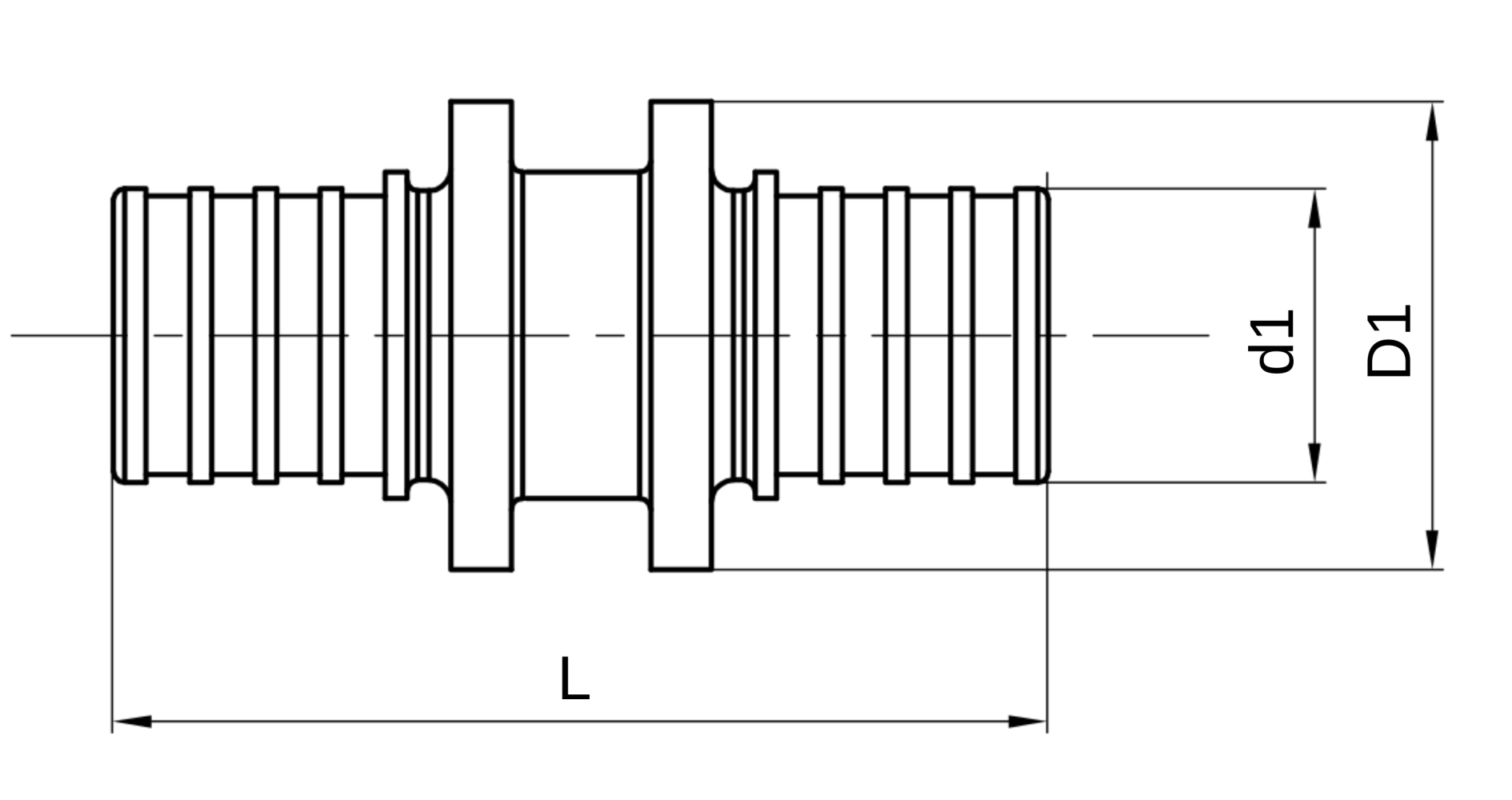

Article Size d1 (mm) D1 (mm) L (mm) Quantity per package (pcs.)
6559694 16 13,5 22,0 43,0 5/50/400
6559695 20 16,5 25,5 52,0 5/40/320
6559696 25 19,8 30,5 68,0 2/20/160
6559697 32 25,3 39,0 80,0 1/14/112
