Purpose: designed for connecting pipes in polyethylene piping systems (PEX, PERT) to shut-off valves and/or plumbing fixtures. Used in heating and water supply systems.
Material:
CW617N brass
Working pressure: 10 bar

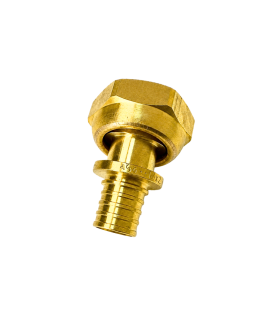

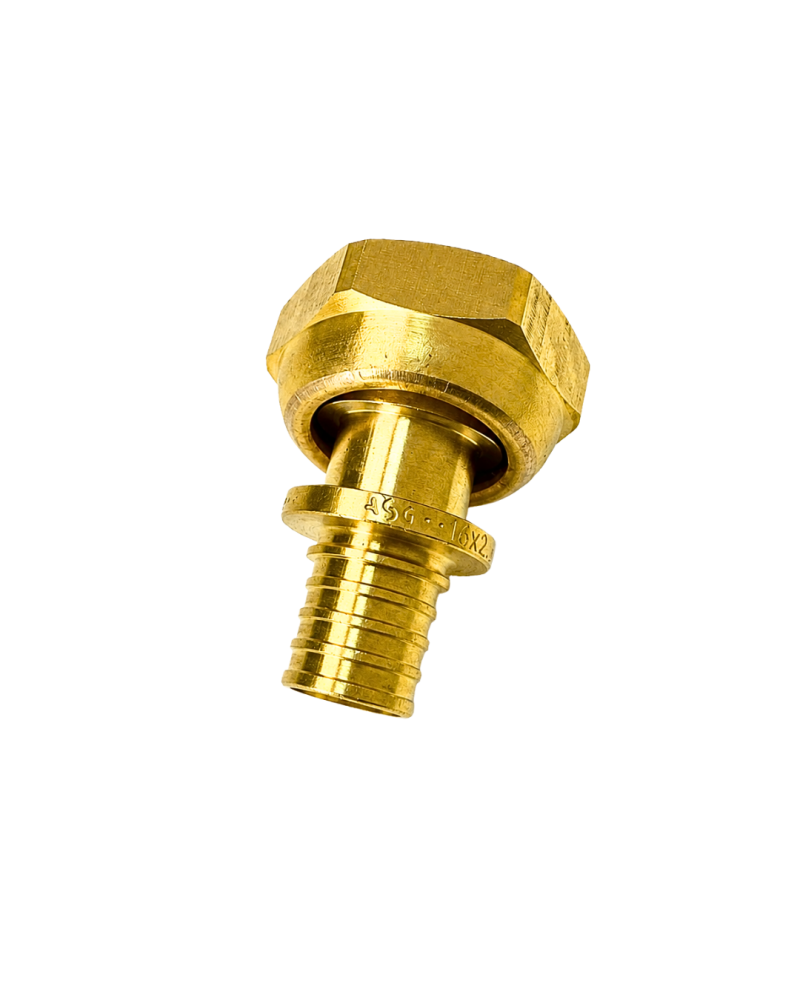

Push-fit coupling with union nut

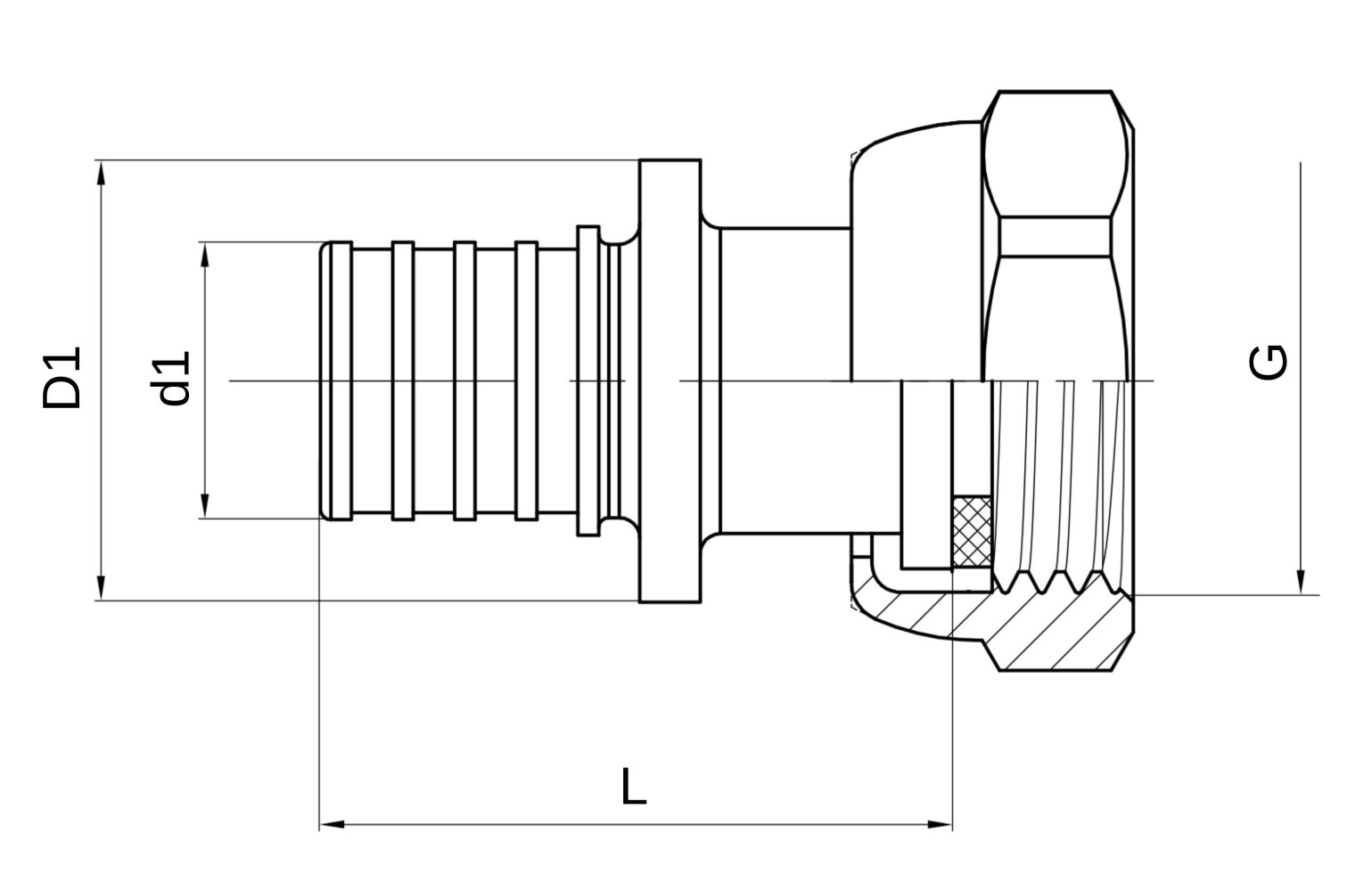

| Article | Size | d1 (mm) | D1 (mm) | L (mm) | Quantity per package (pcs.) |
| 6559717 | 16x1/2" | 13,5 | 22,0 | 32,0 | 10/60/480 |
| 6559718 | 16x3/4" | 13,5 | 22,0 | 33,0 | 5/40/320 |
| 6559719 | 20x1/2" | 16,5 | 22,5 | 37,0 | 5/45/360 |
| 6559720 | 20x3/4" | 16,5 | 22,5 | 38,0 | 5/35/280 |
Documentation
