Purpose: designed for connecting pipes in polyethylene piping systems (PEX, PERT) to shut-off valves and/or plumbing fixtures. Used in heating and water supply systems.
Material:
CW617N brass
Working pressure: 10 bar

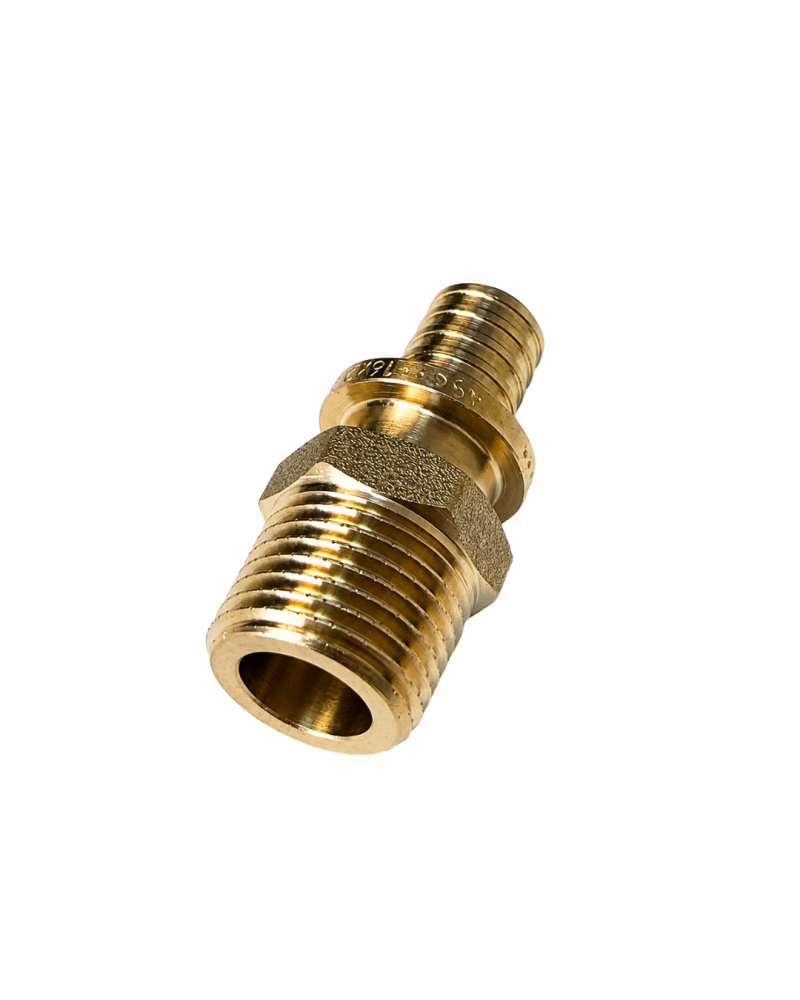

Push-fit adapter with male thread

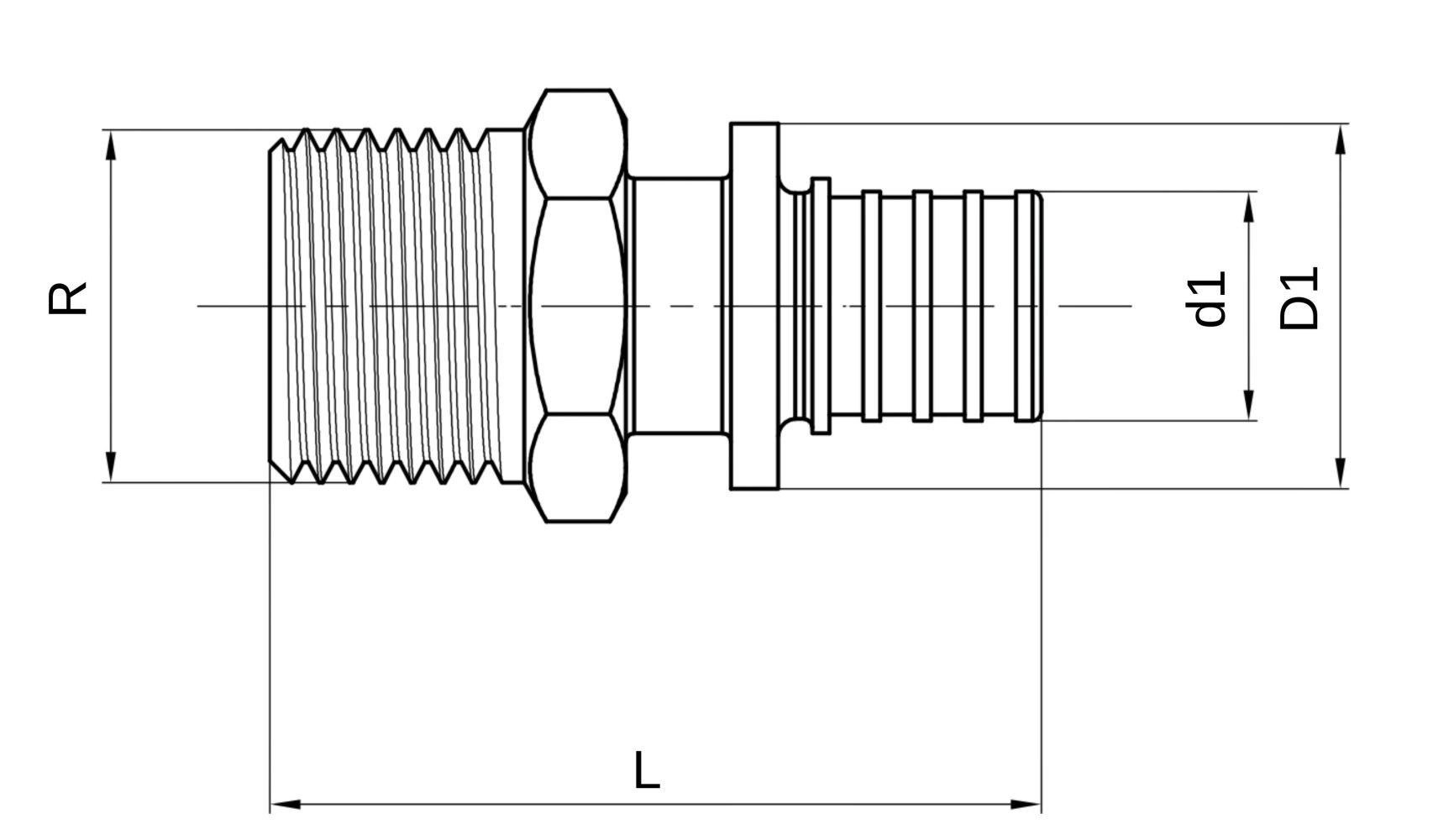

| Article | Size | d1 (mm) | D1 (mm) | L (mm) | R | Quantity per package (pcs.) |
| 6559702 | 16x1/2" | 13,5 | 22.0 | 45,5 | 1/2 | 10/50/400 |
| 6559703 | 16x3/4" | 13,5 | 22.0 | 46,5 | 3/4 | 5/40/320 |
| 6559704 | 20x1/2" | 16,5 | 25.5 | 50.0 | 1/2 | 5/40/320 |
| 6559705 | 20x3/4" | 16,5 | 25.5 | 51.5 | 3/4 | 5/25/200 |
| 6559708 | 25x1" | 19,8 | 30.5 | 63.0 | 1.0 | 2/20/160 |
| 6559706 | 25x1/2" | 19,8 | 30.5 | 58.5 | 1/2 | 2/24/192 |
| 6559707 | 25x3/4" | 19,8 | 30.5 | 60.0 | 3/4 | 2/20/160 |
| 6559710 | 32x1" | 25,3 | 39.0 | 68.5 | 1.0 | 1/15/120 |
| 6559709 | 32x3/4" | 25,3 | 39.0 | 60.5 | 3/4 | 1/15/120 |
