Purpose: designed for connecting pipes in polyethylene piping systems (PEX, PERT) to shut-off valves and/or plumbing fixtures. Used in heating and water supply systems.
Material:
CW617N brass
Working pressure: 10 bar

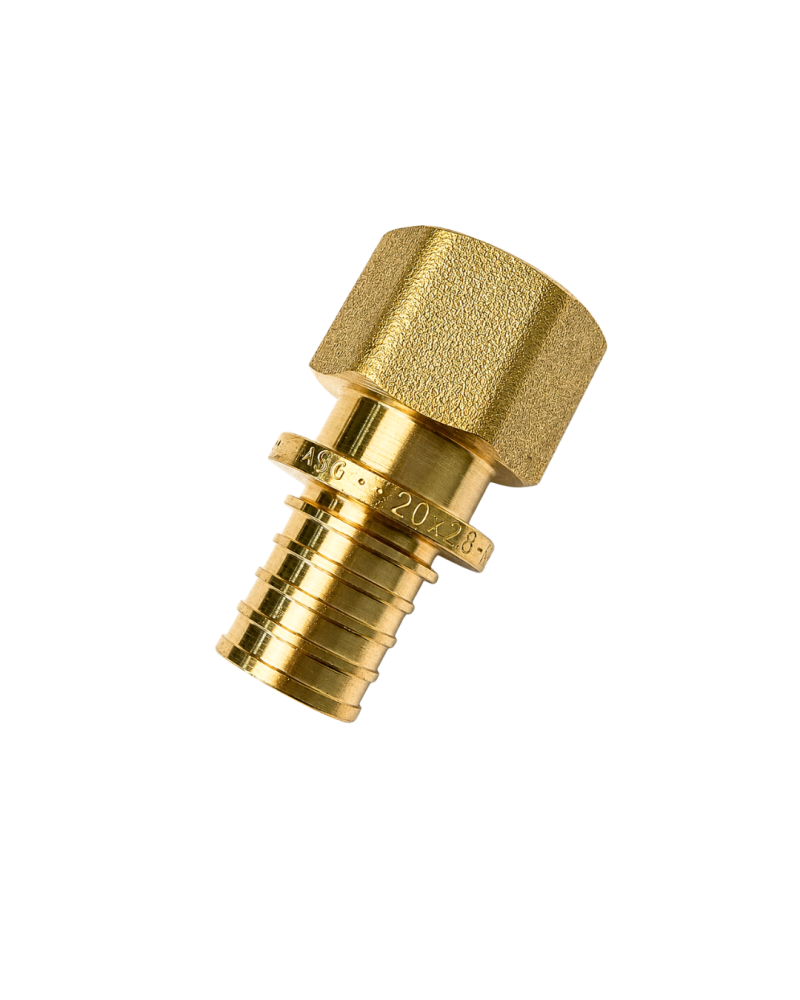

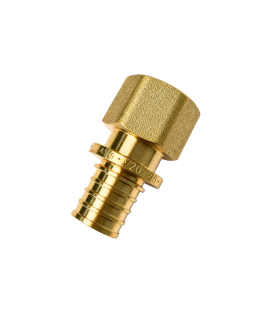

Push-fit adapter with female thread

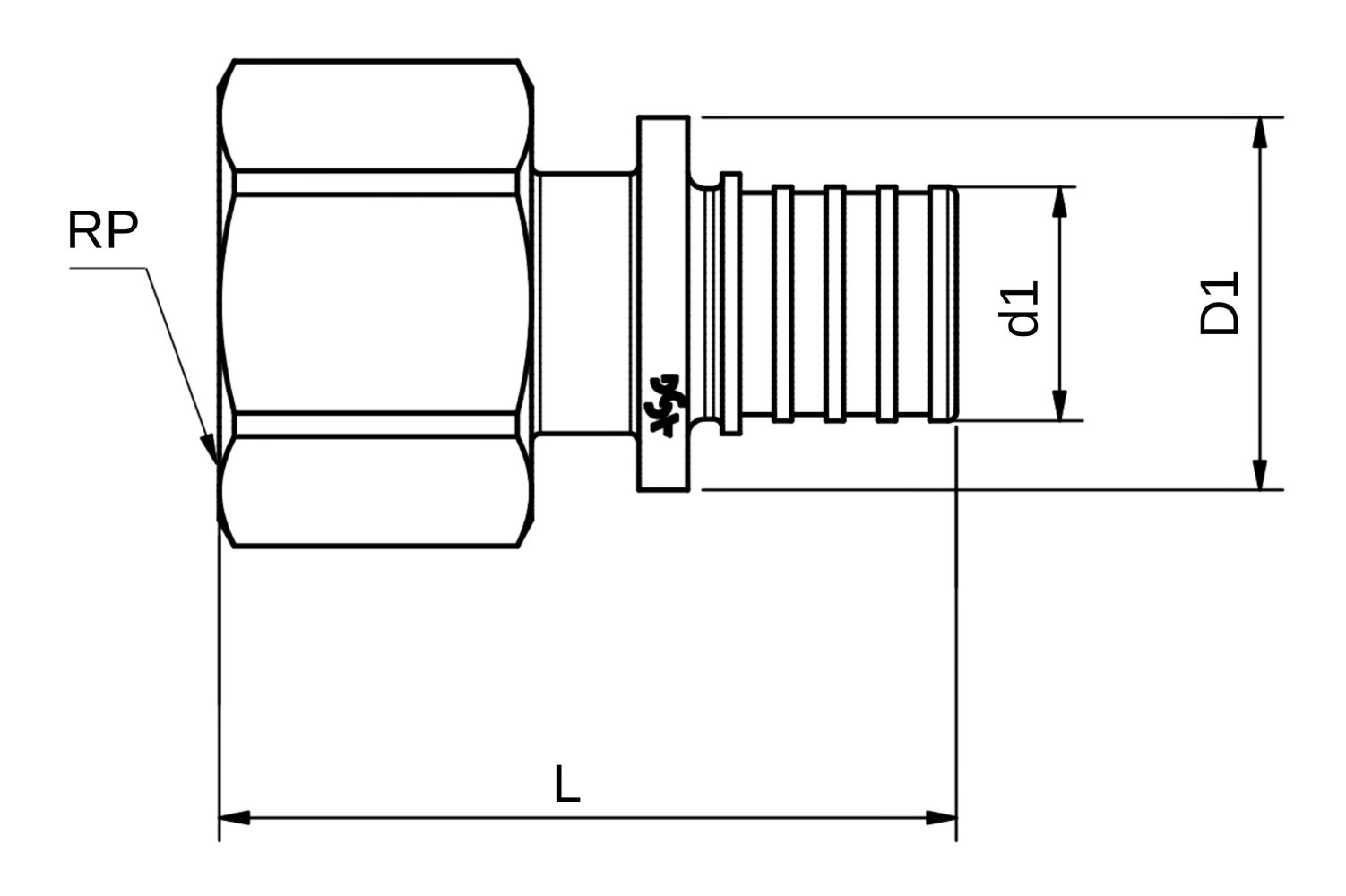

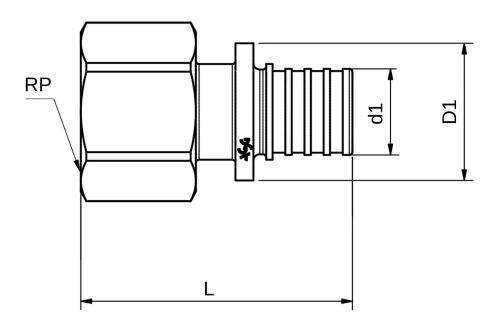

| Article | Size | d1 (mm) | D1 (mm) | L (mm) | RP | Quantity per package (pcs.) |
| 6559711 | 16x1/2" | 13,5 | 22.0 | 42,5 | 1/2 | 10/50/400 |
| 6559712 | 20x1/2" | 16,6 | 25.5 | 48.0 | 1/2 | 5/40/320 |
| 6559713 | 20x3/4" | 16,5 | 25.5 | 48.0 | 3/4 | 5/30/240 |
| 6559715 | 25x1" | 19,8 | 30.5 | 60.5 | 1.0 | 2/16/128 |
| 6559714 | 25x3/4" | 19,8 | 30.5 | 60.0 | 3/4 | 2/20/160 |
| 6559716 | 32x1" | 25,3 | 39.0 | 68.0 | 1.0 | 1/15/120 |
