Material: Cast Iron
Purpose: Used in conjunction with cast iron support pipe for pillars to create vertical support points for pipelines longer than 12.5 meters.
Standard: EN877

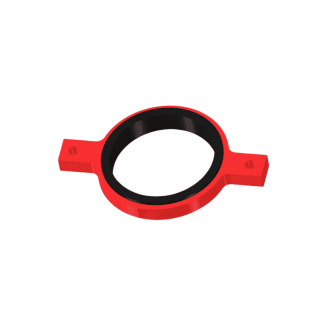

Bracket for stack support pipe ASG SML (AFS)
| Article | Size | a | D1 | D2 | b | t |
| 6560604 | 50 | 193 | 93 | 61 | 148 | 17 |
| 6560605 | 100 | 250 | 147 | 115 | 202 | 17 |
| 6560606 | 125 | 275 | 171 | 138 | 225,5 | 17 |
| 6560607 | 150 | 301 | 199 | 163 | 253,5 | 17 |
| 6560608 | 200 | 360 | 250 | 215 | 310,5 | 19 |
| 6560609 | 300 | 495 | 393 | 332 | 445 | 22 |
