Material: Cast Iron
For connecting pipes in cast iron domestic sewer systems.
Standard: EN877

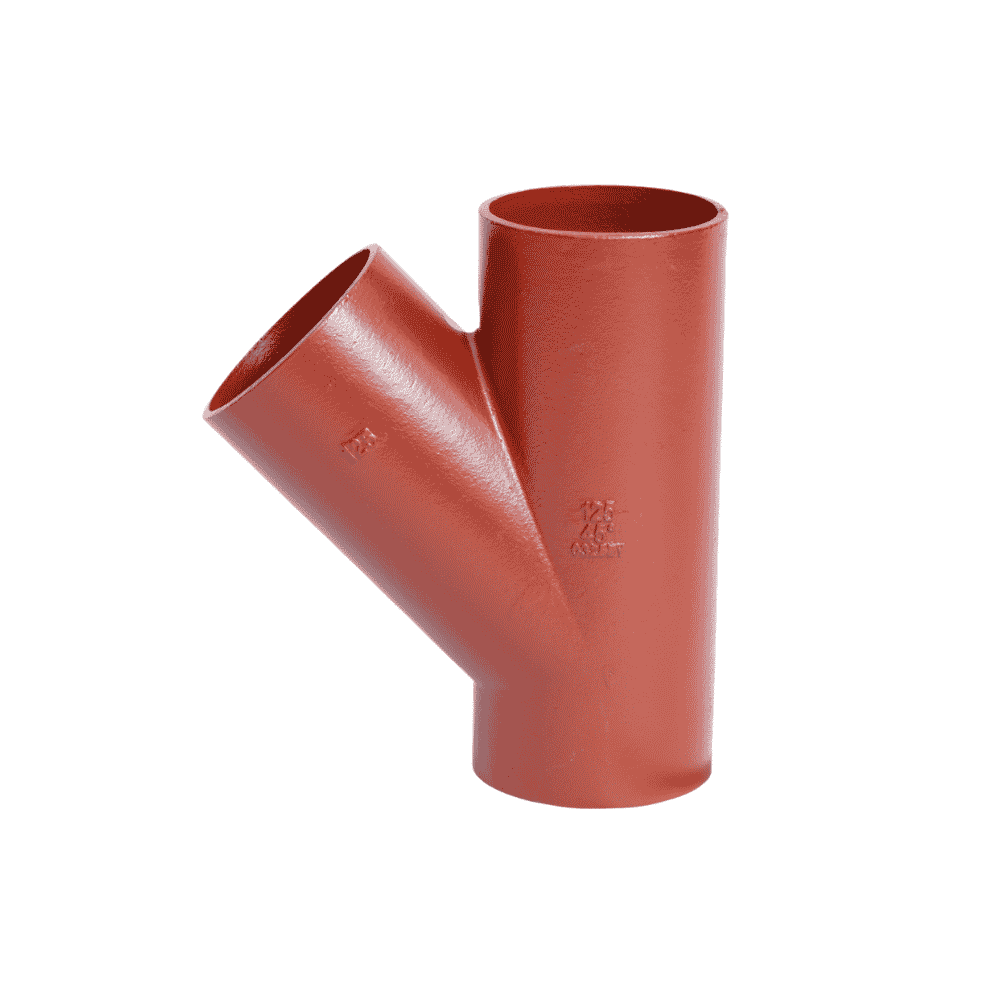

Tee 45° ASG SML
| Article | Size | d1 (mm) | d2 (mm) | L | x1 | x2 | x3 |
| 6560514 | 50х50х45° | 50 | 50 | 185 | 50 | 135 | 135 |
| 6560516 | 100х50х45° | 100 | 50 | 200 | 35 | 165 | 165 |
| 6560515 | 100х100х45° | 100 | 100 | 275 | 70 | 205 | 205 |
| 6560517 | 125х50х45° | 125 | 50 | 205 | 20 | 185 | 185 |
| 6560518 | 125х100х45° | 125 | 100 | 280 | 60 | 220 | 220 |
| 6560519 | 125х125х45° | 125 | 125 | 320 | 80 | 240 | 240 |
| 6560520 | 150х100х45° | 150 | 100 | 295 | 55 | 240 | 240 |
| 6560521 | 150х125х45° | 150 | 125 | 325 | 70 | 255 | 255 |
| 6560522 | 150х150х45° | 150 | 150 | 355 | 90 | 265 | 265 |
| 6560523 | 200х100х45° | 200 | 100 | 305 | 40 | 265 | 265 |
| 6560524 | 200х125х45° | 200 | 125 | 335 | 55 | 280 | 280 |
| 6560525 | 200х150х45° | 200 | 150 | 375 | 75 | 300 | 300 |
| 6560526 | 200х200х45° | 200 | 200 | 455 | 115 | 340 | 340 |
| 6560527 | 250х100х45° | 250 | 100 | ||||
| 6560528 | 250х150х45° | 250 | 150 | 405 | 55 | 350 | 350 |
| 6560529 | 250х200х45° | 250 | 200 | ||||
| 6560530 | 250х250х45° | 250 | 250 | ||||
| 6560531 | 300х150х45° | 300 | 150 | 415 | 35 | 380 | 380 |
| 6560532 | 300х200х45° | 300 | 200 | 435 | 70 | 415 | 440 |
| 6560533 | 300х250х45° | 300 | 250 | ||||
| 6560534 | 300х300х45° | 300 | 300 |
