Designed to change the direction of the pipeline in places with difficult access and limited space.
Service life: 50 years old
Maximum operating temperature: +95 °C
Material: PP-H

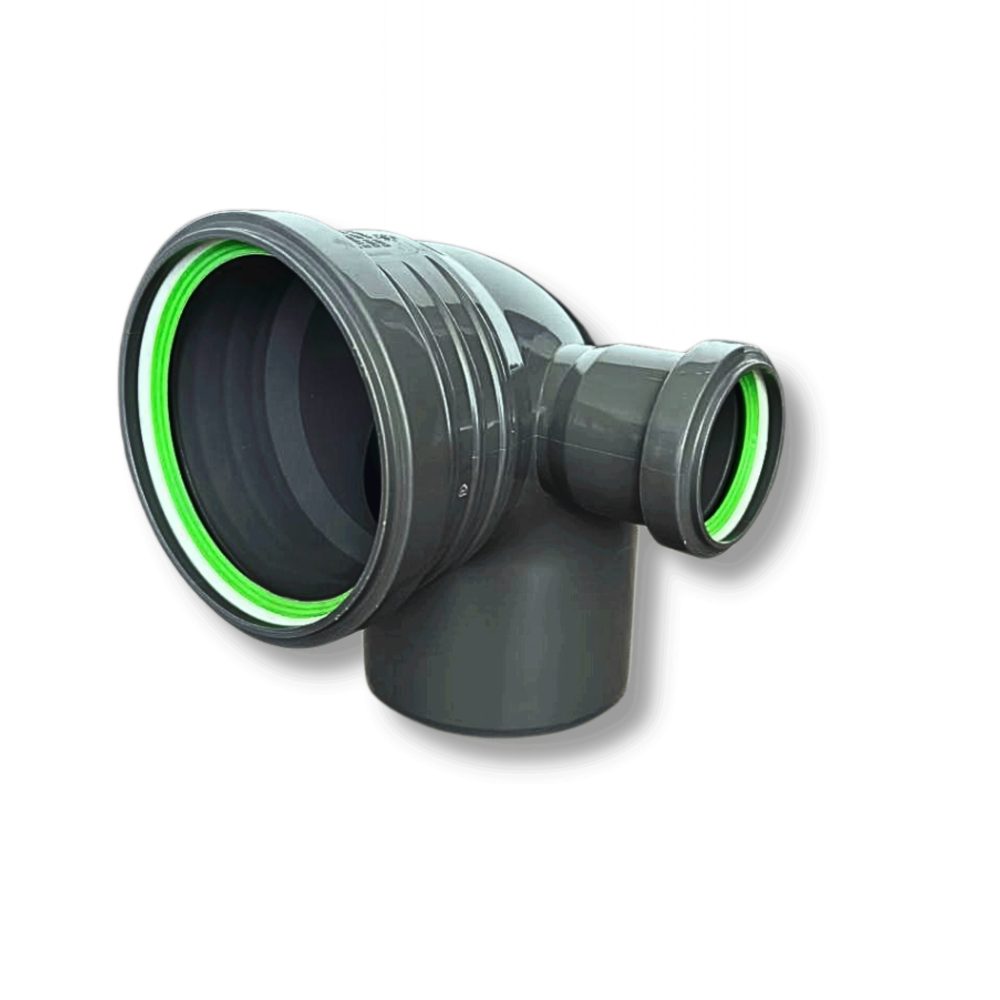

Withdrawal of ASG NANO HTR
Size chart
| Article number | d1x d2xCorner | α1, mm | α2, mm | Z1, mm | Z2, mm | L1, mm | L2, mm | Quantity in a package, pcs |
| 6543039 | 110х50х90°х90° лево | 87,5° | 90° | 61 | 27,8 | 60 | 58 | 16 |
| 6543040 | 110х50х90°х90° право | 87,5° | 90° | 61 | 27,8 | 60 | 58 | 16 |
| 6543042 | 110х50х45°х90° назад | 87,5° | 45° | 63 | 39 | 60 | 58 | 16 |
| 6543041 | 110х50х90°х90° назад | 87,5° | 90° | 63 | 54 | 60 | 58 | 16 |
| 6543043 | 110х50х90°х180° назад | 87,5° | 180° | 63 | 54 | 60 | 58 | 16 |
| 6543044 | 110х50х50х90°х90° два отвода | 87,5° | 90° | 61 | 27,8 | 60 | 58 | 14 |
