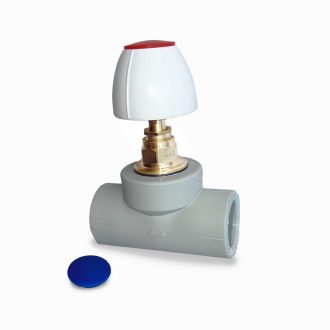

Direct flow valve ASG

 Warranty 15 years
 Warranty 15 years

Material: PP-RCT – brass
Standard: ČSN EN ISO 15874, DIN 8077, DIN 8078, DSTU B V.2.7-144: 2007

The element is used to regulate or completely block the flow in hot and cold water supply systems, as well as heating.
T max 95 °C.

 Warranty 15 years

Size chart

Article number Size D (mm) В (mm) A (mm) С (mm) Quantity in a package (pcs) Bulk (dm³)
1415267234 20 20 69,7 14,5 27 60 0,7
1415267328 25 25 75,9 16 30 40 0,9
1415267342 32 32 86,3 18 33 28 1,39
1415267348 40 40 107 20,5 38 20 1,06
1415267365 50 50 135 23,5 56 10 2,08
1415268261 63 63 160 27,5 60 8 2,95

Scope of application

Drinking water
Heating, air conditioning
Swimming pool
Shipbuilding
Industrial cooling
Technical water
Heat pumps
